    A series of [(FeNiCo)0.85Cr0.15]100-xBx (x = 12, 15, 17) high-entropy alloys with network-like microstructures (N-HEAs) and a wavelength of 3-5 μm was prepared using the fluxing method. The novel N-HEAs exhibited higher strength and ductility compared with samples obtained by suction casting. Neutron diffraction and scanning electron microscopy measurements showed that the network-like structure contained soft face-centered cubic (FCC) and hard tetragonal Cr2B-type sub-networks. The network-like structure was formed during the solidification of the molten alloy from a deeply undercooled state, achieved by removing impurities and most metallic oxides through B2O3 fluxing. The mechanical properties could be tuned by modifying the composition to change the volume fractions of the different sub-networks. When x decreased from 17 to 12, the compressive yield strength decreased from 1.6 to 1.1 GPa, while the compressive strain increased from ~20% to ~70%. The N-HEA samples with x = 12 and 15 also exhibited a good tensile ductility of 19% and 14%, respectively. In situ synchrotron X-ray diffraction results revealed an inhomogeneous deformation behavior, i.e., the soft FCC phase yielded prior to the hard Cr2B-type phase, which bore more stress in the initial stage of the plastic deformation. In the later stage of the plastic deformation, the ductility of the sample was provided by the FCC phase, together with some contributions from the Cr2B-type phase.


    High-entropy alloys (HEAs) or multi-principal-element alloys are a new class of structural materials that have attracted widespread attention since their first synthesis in 2004[1-3]. The development of HEAs provided a new strategy for alloy design, leading to the discovery of new alloys with superior properties in a wide range of loading conditions[4,5]. By tuning the composition, various researchers have developed HEAs with exceptional ductility and fracture toughness at temperatures down to 20 K[6-8], as well as strong and ductile mechanical behavior from cryogenic temperatures to 1073 K[9], and excellent soft magnetic properties with high strength and ductility[10]. Moreover, the nanoscale structural design has been applied to further increase the strength and ductility of HEAs by introducing nanoscale precipitation[11], compositional modulation[12], or disordered grain boundaries[13]. However, these heterogeneous nanostructures may be unstable at elevated temperatures or difficult to fabricate in bulk sizes[14,15], which limits their industrial application. On the other hand, at a larger (i.e., sub-micron to micron) scale, the structure of the HEAs could also significantly influence their mechanical properties, as in the case of lamellar structures[16] or equiaxed grains[17]. These structures could be controlled by conventional thermal/mechanical treatments, i.e., cold/hot rolling or annealing[18-20]. Thus, developing new structures at the sub-micron to micron scale by engineering-friendly methods could be a promising way to accelerate the application of HEAs.

    The fluxing technique is a widely used heat treatment method in metallurgy, in which the impurity and metallic oxide contents of the molten alloy are reduced by immersing in molten oxides[21] or salts[22] to improve its properties. This approach has been successfully applied to achieve a large undercooling of different alloy melts, in order to alter the solidification kinetics[23,24] or even form bulk metallic glasses[21]. Novel microstructures could be formed when the melt is solidified at a deeply undercooled state by fluxing, which is difficult to reach with other techniques. For example, using the B2O3 fluxing treatment, Fe-C and Fe-B-C alloys can be cast into an interconnected network morphology at the submicron to micron scale, showing higher strength and plasticity than white cast iron with a typical eutectic structure[25].

    In this work, the B2O3 fluxing treatment was applied to fabricate high-entropy alloys with novel network-like microstructures (N-HEAs)[26,27]. A high degree of undercooling (385 K) was achieved for [(FeNiCo)0.85Cr0.15]100-xBx (x = 12, 15, 17) N-HEAs with a diameter of ~13 mm. The morphology of the microstructures was inspected by scanning electron microscopy (SEM) and transmission electron microscopy (TEM), and the phase composition was studied by energy-dispersive spectroscopy (EDS) and neutron diffraction. The deformation mechanism was further investigated using in situ synchrotron X-ray diffraction during tension test. We also discuss the origin of the large undercooling, the relationship of the mechanical properties with the microstructures, as well as phase fractions, and the deformation mechanism.


    Sample preparation and fluxing treatment

    [(FeNiCo)0.85Cr0.15]100-xBx (x = 12, 15, 17) ingots were prepared by vacuum induction heating using pure elements (purity > 99.95 wt.%). Then, the alloy ingots were remelted at least five times under a high-purity Ti-gettered argon atmosphere in a water-cooled copper crucible; the ingots were flipped each time to improve the chemical homogeneity. After that, the alloy ingots were transferred into molten B2O3 and underwent fluxing treatment for 2 h at 1,473 K in a dry-cleaned fused silica tube with inner and outer diameters of 16 and 19 mm, respectively. A schematic diagram of the fluxing experiment setup is shown in Figure 1A. After the fluxing treatment, the fused silica tube was removed from the muffle furnace and cooled in air. A high-speed camera and a thermocouple[28] were used to record the cooling process of the system and the temperature history, respectively. To measure the liquidus temperature (TL) of the samples, differential scanning calorimeter (DSC) experiments (Netzsch 404 F3) were performed under a high-purity argon atmosphere, with a cooling rate of 20 K min-1 from 1,500 K to 300 K.

    Figure 1. (A) Schematic diagram of B2O3 fluxing experiment setup (left). Photograph of alloy ingot showing the morphology of the specimen after fluxing (units: cm) (right). (B) Solidification process of molten alloy droplet, showing the recalescence phenomenon. (C) Cooling curve of [(FeNiCo)0.85Cr0.15]83B17 N-HEA melt. The red arrow indicates the occurrence of recalescence. (D) DSC curves of [(FeNiCo)0.85Cr0.15]100-xBx (x = 12, 15, 17) N-HEAs during cooling process. The black arrow indicates the liquidus temperature of [(FeNiCo)0.85Cr0.15]83B17 N-HEA.

    Neutron and synchrotron X-ray diffraction experiments

    Time-of-flight neutron diffraction experiments in transmission mode were carried out on the General Purpose Powder Diffractometer (GPPD) beamline at the China Spallation Neutron Source[29], with a neutron beam bandwidth and size of 4.5 Å and 40 × 20 mm, respectively. Diffraction data were collected for 2 h on each sample. The microstructure was determined by Rietveld refinement using the GSAS software[30]. In situ high-energy synchrotron X-ray diffraction measurements were performed at the 11-ID-C beamline of the Advanced Photon Source (APS, Argonne National Laboratory). High-energy X-rays with a wavelength of 0.01173 nm were used for data collection. The strain rate used in the in situ tensile test is 4 × 10-4 s-1. The lattice strain εhkl was calculated as (dhkl - d°hkl)/(d°hkl), where dhkl is the lattice spacing of the hkl planes, and d°hkl is the corresponding value for the stress-free sample[6].

    Morphology characterization and mechanical tests

    The morphology and composition of the alloy were characterized using FEI Quanta 250F SEM, JSM-IT500HR SEM, and FEI Talos F200X TEM microscopes equipped with an attached X-ray EDS instrument. Cylinder-shaped compressive samples with a diameter of 3 mm and a height of 4.5 mm, as well as dog-bone-shaped tensile specimens with a gauge length of 10 mm and a thickness of 1mm were fabricated by electrical discharge machining. To obtain the tensile specimens, the spherical fluxed ingots were subjected to an additional treatment, consisting of annealing at 1,273 K for 10 h, hot rolling (with 80% thickness reduction), and annealing at 1,273 K for 10 h again. Uniaxial compressive and tensile tests were performed on a UTM4304GD testing machine with a strain rate of 1 × 10-3 s-1. Hardness values were measured with a HVST-1000Z (Deka Precision Measuring Instrument) tester.


    Measurement of degree of undercooling achieved by fluxing treatment

    Figure 1B shows the solidification process of the [(FeNiCo)0.85Cr0.15]83B17 alloy melt immersed in molten B2O3. The photographs in Figure 1B display the cooling process of the molten alloy ingot. After air-cooling for 35 s 14 ms, recalescence occurred due to latent heat released during crystallization[31]. The crystallization occurred on the sample surface, and the crystal/liquid interface gradually moved across the whole sample within 5 ms. Figure 1C shows the temperature changes during the cooling process, as recorded by the thermocouple. At the beginning of the process, the sample was air-cooled with an average cooling rate of 2 K s-1. The temperature increased by 135 K during recalescence, as marked by the red arrow in Figure 1C. The liquidus temperature of the [(FeNiCo)0.85Cr0.15]83B17 N-HEA was measured to be 1,350 K [Figure 1D]. Thus, the undercooling of the molten alloys with a diameter of approximately 13 mm could be estimated at 385 K. The DSC curves of [(FeNiCo)0.85Cr0.15]85B15 and [(FeNiCo)0.85Cr0.15]88B12 N-HEAs are also shown in Figure 1D for comparison.

    Neutron diffraction measurements and phase identification

    The neutron diffraction patterns of the fluxed N-HEAs are shown in Figure 2A-C. Because of the neutron absorption of the B element, samples were polished to a thickness of ~200 μm to increase the transmittance. Vanadium boxes were used as sample holders; hence, the diffraction spectrum of the vanadium background could also be observed. Rietveld refinement of the neutron diffraction patterns revealed that the fluxed N-HEAs contained a tetragonal Cr2B-type intermetallic phase and an FCC solid solution. The lattice parameter of the FCC solid solution was 3.5643 Å, while the parameters of the Cr2B-type intermetallic phase were a = b = 5.0926 Å,c = 4.2237 Å, and α = β = γ = 90°. For the sample with x = 17, the fraction of the Cr2B-type phase was 61 wt.%, larger than that of the FCC phase, 39 wt.%. When the B content decreased to 12%, the fraction of Cr2B-type phase dropped to 55 wt.%, and the FCC phase fraction increased to 45 wt.%. For the sample with x = 15, the phase fractions lay between the above values. Image processing based on the CAD software was employed to calculate the volume fraction of the two phases, according to the contrast difference between different phases in SEM images of the samples (details of the phase identification from the SEM images are presented in Section "Network-like morphology of fluxed N-HEA samples"); the results are illustrated in Figure 2D, which is consistent with the data obtained from neutron diffraction.

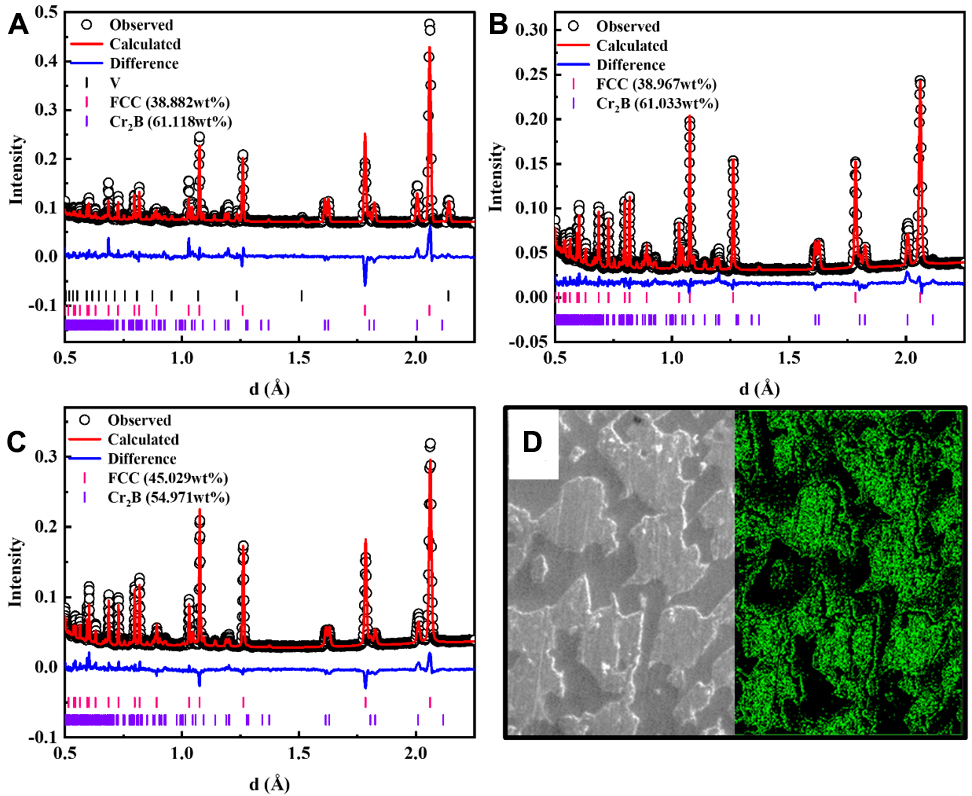

    Figure 2. Neutron diffraction patterns and Rietveld refinement results of the fluxed [(FeNiCo)0.85Cr0.15]100-xBx N-HEAs, with x = 17 (A), 15 (B), and 12 (C). (D) Illustration of image processing approach used to estimate the phase fractions; the left half shows the SEM image, and the right half displays the processed image used to calculate the phase fraction.

    Network-like morphology of fluxed N-HEA samples

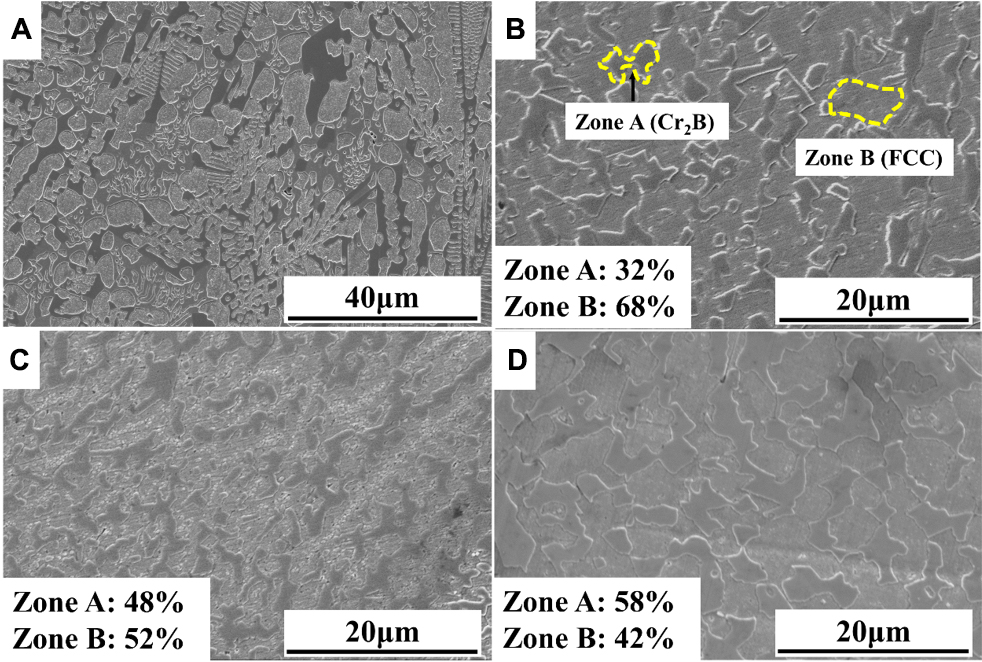

    Figure 3A-D show SEM images of the [(FeNiCo)0.85Cr0.15]100-xBx (x = 12, 15, 17) N-HEAs. Figure 3A displays the SEM image of the non-fluxed suction-cast [(FeNiCo)0.85Cr0.15]83B17 N-HEA, showing coarse and elongated dendrites with sizes above 10 μm[32]. However, as shown in Figure 3B, the fluxed N-HEAs possessed a uniform network-like morphology, consisting of dark (zone A) and bright (zone B) sub-networks. The wavelength of the network structure was around 3-5 μm, thus smaller than the size of the dendrites in the non-fluxed sample. When the B content changed from 12% to 17%, the volume fraction of the dark phase (zone A) showed a gradual increase [Figure 3B-D]. For samples with x < 12%, the network structure may be further broken because the volume fraction of the dark phase is too small to be well interconnected.

    Figure 3. SEM images showing morphology of bulk [(FeNiCo)0.85Cr0.15]100-xBx (x = 12, 15, 17) N-HEAs prepared by suction casting after arc melting for x = 17 (A), and by the fluxing method for x = 12 (B), x = 15 (C), and x = 17 (D). The phase fractions obtained by SEM image processing are superimposed in the figures for direct comparison.

    Figure 4A and B show the elemental distributions of zones A and B determined by SEM/EDS mapping analysis of the [(FeNiCo)0.85Cr0.15]83B17 HEA. Zone A was found to be Cr-rich, whereas zone B was Ni-rich. Even though the non-fluxed sample had a different morphology, its elemental distribution was similar to the fluxed samples, with the brighter part containing more Ni. Because of its low atomic number, the B element is too light to be detected by EDS, and the corresponding data are not accurate in Figure 4. The results for the fluxed [(FeNiCo)0.85Cr0.15]85B15 and [(FeNiCo)0.85Cr0.15]88B12 samples were consistent with those obtained for [(FeNiCo)0.85Cr0.15]83B17. The TEM/EDS mapping results of the fluxed [(FeNiCo)0.85Cr0.15]83B17 sample are also shown in Figure 4C. The selected-area electron diffraction patterns displayed in the insets of the bright-field TEM image in Figure 4C show the phase information of each network. The elemental distribution of both networks was consistent with that obtained by SEM/EDS. As the TEM/EDS results may be more accurate than SEM/EDS, the compositions of zone A and zone B obtained with this approach are summarized in Table 1.

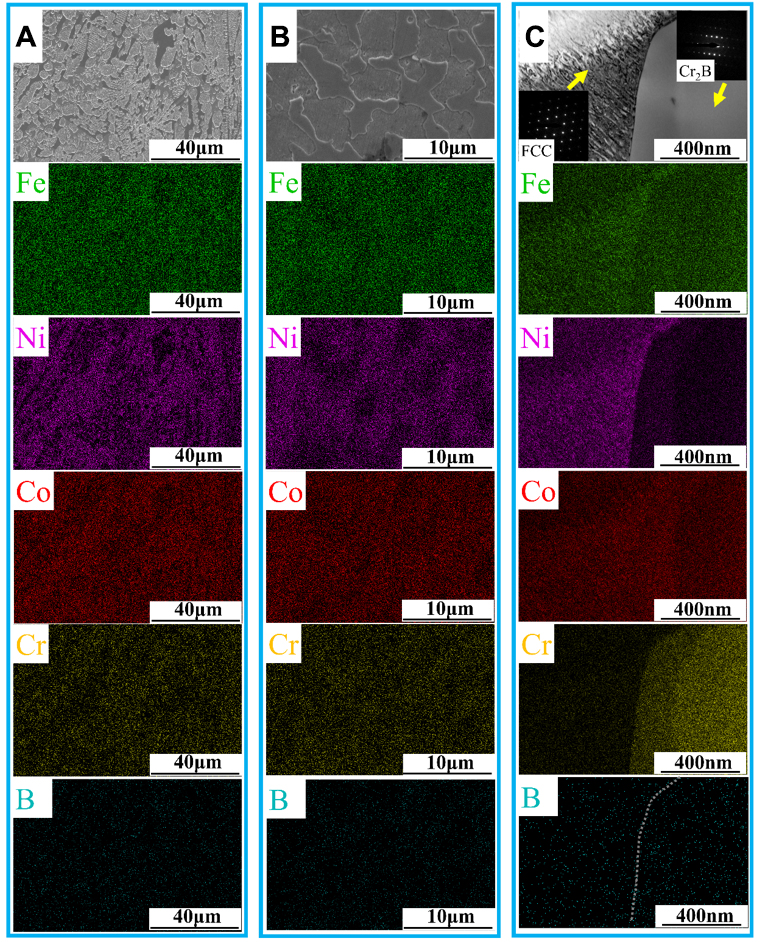

    Figure 4. SEM/EDS mapping results for the non-fluxed suction-cast (A) and fluxed (B) [(FeNiCo)0.85Cr0.15]83B17 N-HEAs, showing Zone A (Cr2B) is Cr-rich and Zone B (FCC) is Ni-rich. (C) TEM/EDS mapping results for the fluxed [(FeNiCo)0.85Cr0.15])83B17 N-HEA. The upper picture of (C) is the TEM bright field image, showing the Cr2B grain (right part) and the FCC grain (left part with moire fringes). The insets display the selected area electron diffraction patterns of each phase. The dashed line in the B element map of (C) denotes the grain boundary.

    Table 1

    Chemical compositions of zone A and zone B estimated from TEM/EDS (at. %)

    Element concentration (at. %)FeNiCoCrB
    Zone A (dark region in Figure 4B)26.4710.3326.8735.081.25
    Zone B (bright region in Figure 4B)27.8536.4629.845.840.01

    Mechanical properties of fluxed samples with different B contents

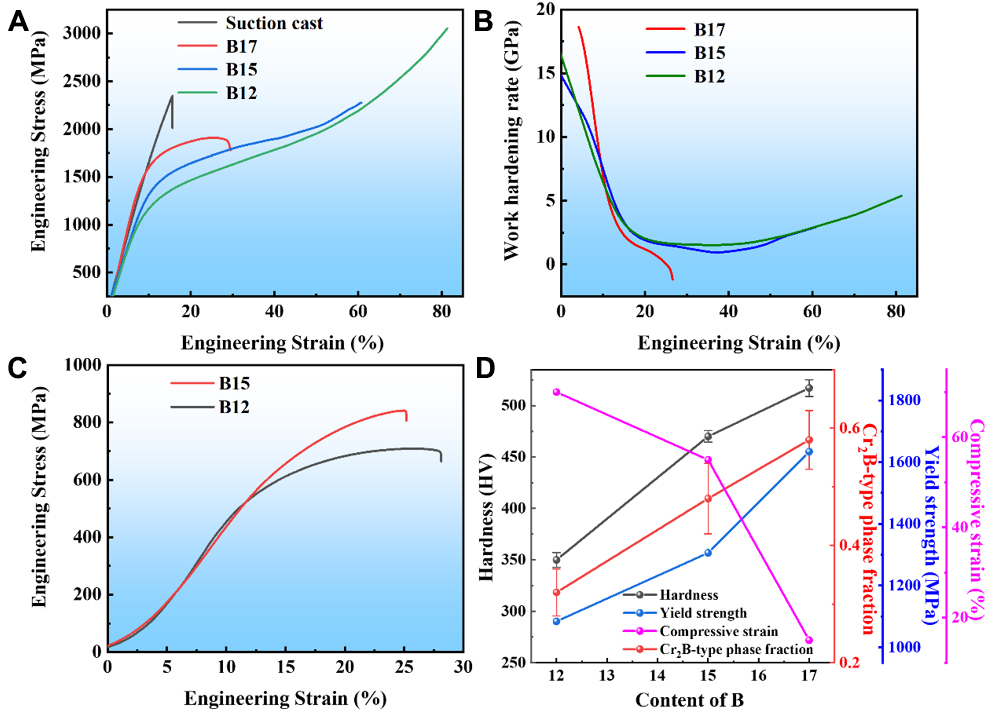

    Figure 5A shows the compressive stress-strain curves of the fluxed [(FeNiCo)0.85Cr0.15]100-xBx (x = 12, 15, 17) N-HEAs. As a reference, the figure also shows the data of the non-fluxed suction-cast [(FeNiCo)0.85Cr0.15]83B17 N-HEA, which exhibited a brittle fracture behavior, with an ultimate strength of 2.3 GPa. The fluxed N-HEAs, with a uniform network-like structure, showed an excellent combination of strength and plasticity. The yield strength and compressive strain of the sample with x = 17 (denoted as B17) were 1.6 GPa and 20%, respectively, whereas those of the sample with x = 12 (denoted as B12) were 1.1 GPa and > 70%, respectively. The mechanical properties of the sample with x = 15 (B15) were intermediate between those of the B17 and B12 samples. Because of its significant plasticity, the B12 sample did not break up during the compression test. In addition, the fluxed N-HEAs showed work-hardening behavior, as illustrated by the corresponding rate curves in Figure 5B. In particular, the tensile ductility of the B12 and B15 samples reached 19% and 14%, respectively [Figure 5C]. Because of the dual-phase structure and hot rolling treatment for tensile specimens, there is a tension-compression asymmetry of B12 and B15 samples. The yield strength, compressive strain, and hardness data are summarized in Figure 5D, which shows a good correlation of these parameters with the B content and volume fractions of the constituent phases.

    Figure 5. (A) Engineering compressive stress-strain curves of [(FeNiCo)0.85Cr0.15]100-xBx (x = 12, 15, 17) N-HEAs. (B) Work-hardening rate curves for fluxed samples. (C) Tensile stress-strain curves of fluxed B12 and B15 samples. (D) Evolution of mechanical properties of [(FeNiCo)0.85Cr0.15]100-xBx N-HEAs as a function of B content.

    Deformation mechanism revealed by in situ synchrotron X-ray diffraction

    Figure 6A shows the synchrotron X-ray diffraction patterns of the [(FeNiCo)0.85Cr0.15]88B12 sample at different deformation stages along the loading direction. The enlarged view shows the changes in peak position and intensity, as well as the broadening of the peak profile during deformation. The lattice strains of the different phases were derived from the position shifts[6] of different Bragg peaks, and the results are shown in Figure 6B. According to the yielding of the different phases, the whole deformation could be divided into three regions. In the elastic region I (below 350 MPa), the lattice strain for all orientations changes linearly with the applied stress. The different slopes are a result of elastic anisotropy[33]. For the FCC phase, the (200) grains exhibited the largest lattice strain, while the (111) and (222) ones showed the smallest values. For the Cr2B-type phase, the (002) grains displayed the largest lattice strain, followed by the (112) and (202) planes. Table 2 summarizes the grain orientation dependence of the elastic moduli (Ehkl), obtained from the slope of the linear relationship of stress and strain in the elastic region. In the FCC phase, (200) and (111) were the elastically softest and stiffest orientations, respectively, similar to other FCC alloys[34,35]. In the Cr2B-type phase, the (002) orientation was more compliant compared with the (112) and (202) ones. Above 350 MPa (region II), the lattice strains for all FCC grains lost their linear relationship and stopped increasing with the applied stress, indicating that the FCC phase yielded. The plastic deformation of the soft FCC phase was constrained by the hard Cr2B-type phase, as no macroscopic yielding could be observed. In contrast, the lattice strains of the Cr2B-type phase increased more rapidly. When the stress increased to around 500 MPa (region III), the Cr2B-type phase started to deform plastically, as evidenced by the deviation from the linearity of the (112) and (202) planes. Moreover, the lattice strain of the Cr2B-type phase in regions II and III was generally larger than that of the FCC phase, showing that the Cr2B-type phase bore more stress in the plastic regime; this indicates the existence of stress partitioning among the different phases[36,37]. Another feature worth noting is the absence of splitting between the lattice strains of the (111) and (222) planes in the FCC phase, suggesting that no stacking fault was formed during deformation[38].

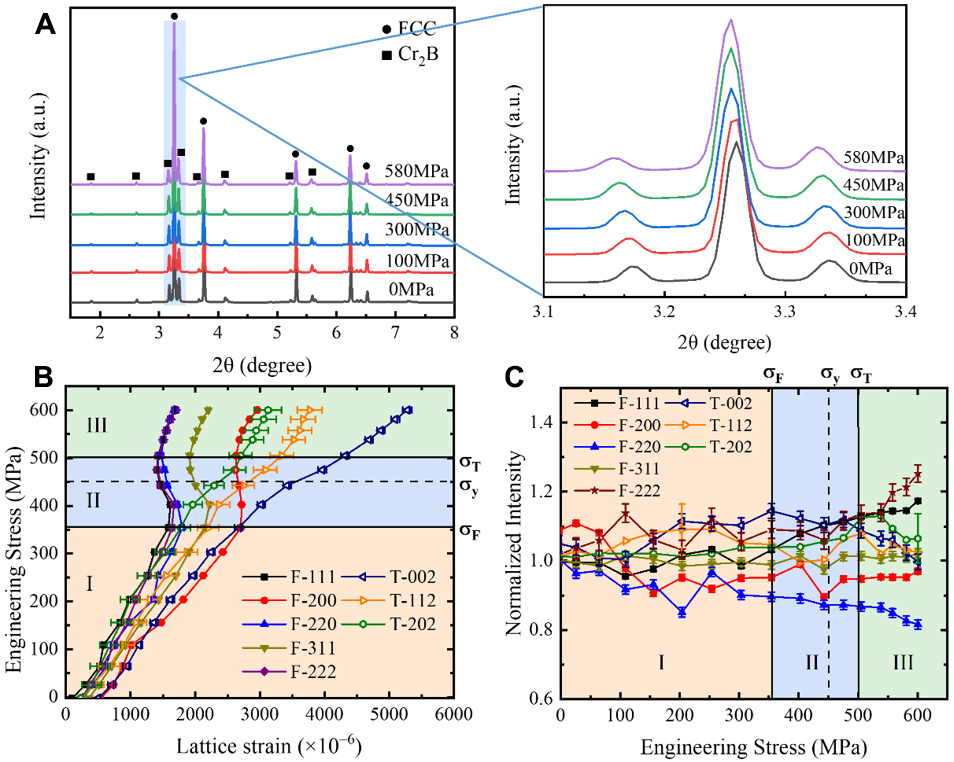

    Figure 6. (A) Synchrotron X-ray diffraction patterns of [(FeNiCo)0.85Cr0.15]88B12 sample along the loading direction at different deformation stages. The inset shows an enlarged view of the evolution of the main peaks. (B) Relationship of lattice strain of FCC and Cr2B-type phases with engineering stress. (C) Texture development (represented by the normalized integrated intensity of different Bragg peaks) in FCC and Cr2B-type phases with engineering stress. For clarity, error bars are only shown for selected points on (112) and (202) reflections. F and T denote the FCC and tetragonal Cr2B-type phases, respectively.

    Table 2

    Elastic moduli of different (hkl) planes in FCC and Cr2B-type phases

    FCC phaseCr2B-type phase
    244 ± 7160 ± 4222 ± 8197 ± 2168 ± 4190 ± 4229 ± 8

    The evolution of the normalized peak intensity, representing the texture development, is shown in Figure 6C for both the FCC and Cr2B-type phases. In the case of the FCC phase, no noticeable texture was observed in region I. After yielding (regions II and III), the normalized intensity of the (111) and (222) peaks increased, while that of the (220) decreased. These intensity changes result from the characteristic texture caused by dislocation slip in FCC alloys[39-42]. Combined with the lattice strain evolution results, we can conclude that dislocation slip was the main deformation mechanism for the FCC phase. However, no distinct texture was formed in the Cr2B-type phase.


    Origin of large degree of undercooling

    The as-prepared fluxed N-HEAs showed high strength and ductility. One of the key requirements for forming a network-like structure at the submicron to micron scale is that the deep undercooled liquid state should be accessible before crystallization[25]. In this work, the degree of undercooling in the centimeter-sized B17 N-HEAs could reach values as high as 385 K, showing the great application potential of this alloy. The fluxing agent B2O3 plays an essential role in reducing the contents of impurities and surface metallic oxides in the sample, increasing the undercooling degree[21]. On the other hand, various degrees of chemical short-range order can coexist in the molten alloys, due to the complex composition of HEAs[43], which hinders crystallization during undercooling[44,45]. These two mechanisms could explain the large undercooling of the N-HEAs.

    Formation of network morphology in fluxed N-HEAs

    One of the possible mechanisms of network structure formation is spinodal decomposition. A liquid-state miscibility gap may exist in the undercooled liquids of metal-metalloid alloy systems (i.e., Fe-B, Fe-B-C), due to the existence of unique short-range orders in the undercooled liquids[24,28,46]. The chemical complexity of the undercooled HEA liquids studied here would facilitate the formation of short-range order[43], potentially enabling the formation of a metastable miscibility gap. Once sufficient undercooling is reached, the HEA liquids may transform into network liquids through spinodal decomposition[47]. The solidification of the spinodal network liquids then results in the formation of a crystalline network structure. Moreover, other mechanisms may also be factors of network structure. Literature[48-50] showed that the Rayleigh instability may induce the fragmentation of dendrites during recalescence at large undercooling, resulting in a network structure. Furthermore, another factor is the entropy effect. With increasing configurational entropy, the growth morphology may transit from dendritic to faceted[51,52], leading to a structure that is different from the dendritic[32,53], lamellar[54], or equiaxed grain structures[55,56] formed through conventional casting processes. Using conventional methods, the microstructures can only be modified in the solid state by thermal/mechanical treatments to introduce precipitates, structural defects, or refinement of the as-cast grains[55,57]. The fluxing technique offers a unique route to directly develop the network structure in bulk-sized samples through the solidification of undercooled liquids, highlighting the promising potential of the fluxed N-HEAs in industrial applications.

    Composition dependence of phase fractions

    The present results showed that the network-like structure could be controlled by tuning the B content of the alloys. The EDS results summarized in Table 1 show little difference between the Fe and Co contents in the two phases, while the Ni and Cr contents were significantly different. The enthalpy of mixing (ΔH) between elements is summarized in Table 3[58], which shows that the absolute ΔH value between Cr and B was the largest. Thus, it is reasonable that Cr and B prefer to segregate to form intermetallic phases in one sub-network. This was also confirmed by the neutron diffraction results, which revealed the presence of Cr2B-type intermetallic phases. As long as the Cr element is still present in the FCC solid solution, the volume fraction of Cr2B may increase with increasing B content.

    Table 3

    ΔH values (kJ/mol) between elements calculated by Miedema’s model[58]


    Structural origin of improved mechanical properties

    As summarized in Figure 5D, the mechanical behavior is correlated with the volume fractions of the soft/ductile FCC phase and hard/brittle Cr2B-type intermetallic phase. The samples with a lower volume fraction of hard/brittle Cr2B intermetallic phase exhibit a lower hardness and yield strength but a higher compressive strain. In situ synchrotron X-ray diffraction measurements of the tensile behavior of the B12 alloy revealed a three-stage deformation process, with the ductile FCC phase yielding earlier, and the hard Cr2B-type intermetallic phase yielding later than the macroscopic yielding in the plastic region. The whole deformation is inhomogeneous, indicating that the deformation is accommodated between the two phases, maintaining the plastic compatibility. This heterogeneous deformation has also been observed in austenite-ferrite dual-phase steels[59,60]. The Cr2B-type intermetallic phase bears more stress after yielding, as evidenced by the larger lattice strain. Similar to multiphase steel, where the hard phases bearing more stress ensure a sufficient work-hardening capability[37], the hard Cr2B-type phase in the B12 alloy may contribute to a strain-hardening effect and an excellent combination of strength and ductility. Moreover, the FCC phase also has high work hardening ability due to the multiple slip systems as well as other deformation mechanisms such as stacking fault, twinning and phase transformation[6,39]. In this study, dislocations could be observed, as revealed by the increasing trend of F-111 and F-222 intensity in the plastic region, and no evidence of the involving stacking faults and phase transformation could be found from the synchrotron experiments. Further investigation is needed to explain the work-hardening effect of the FCC phase at a large strain.

    In addition, although our in situ loaded sample only deformed to several percent, a tiny increase of lattice strain in the FCC phase after 500 MPa could be observed, which means that stress was partitioned with the FCC phase[61]. A previous study of austenite-martensite dual-phase steel attributed the improved ductility to stress transfer from the hard to the soft phase, forcing the two phases to deform together[33]. The cooperative deformation, as well as stress partitioning, could inhibit the strain localization and thus delay the crack activation. Similar to this phenomenon, the enhanced combination of strength and ductility in the B12 alloy can be correlated to the dual-phase structure, where the hard Cr2B-type intermetallic phase and the soft FCC phase deform synergically.

    Figure 7 shows SEM images of the fracture surface of B12 obtained after the tensile test (the fracture surface of the B15 sample, i.e., Figure 7C and D, is similar). As shown in Figure 7A, the fracture surface contained uniformly distributed dimples, a typical fracture morphology for ductile samples[62]. The size of the dimples was about 3-5 μm, similar to the wavelength of a network structure. Furthermore, no large micro-voids were found on the fracture surfaces. Previous studies showed that 304 L austenitic stainless steels[63] and CrFeCoNi HEAs[62] with small-size dimples had high ductility. Our results indicate that the soft FCC phase may participate in the deformation process in stages involving large plastic deformations, contributing to improved ductility. The enlarged view of the fracture surface [Figure 7B] also displays some fracture patterns with sharp angles (marked by yellow lines), similar to the intergranular fracture surface of brittle samples[64]. This may be attributed to the deformation of the Cr2B-type phase.

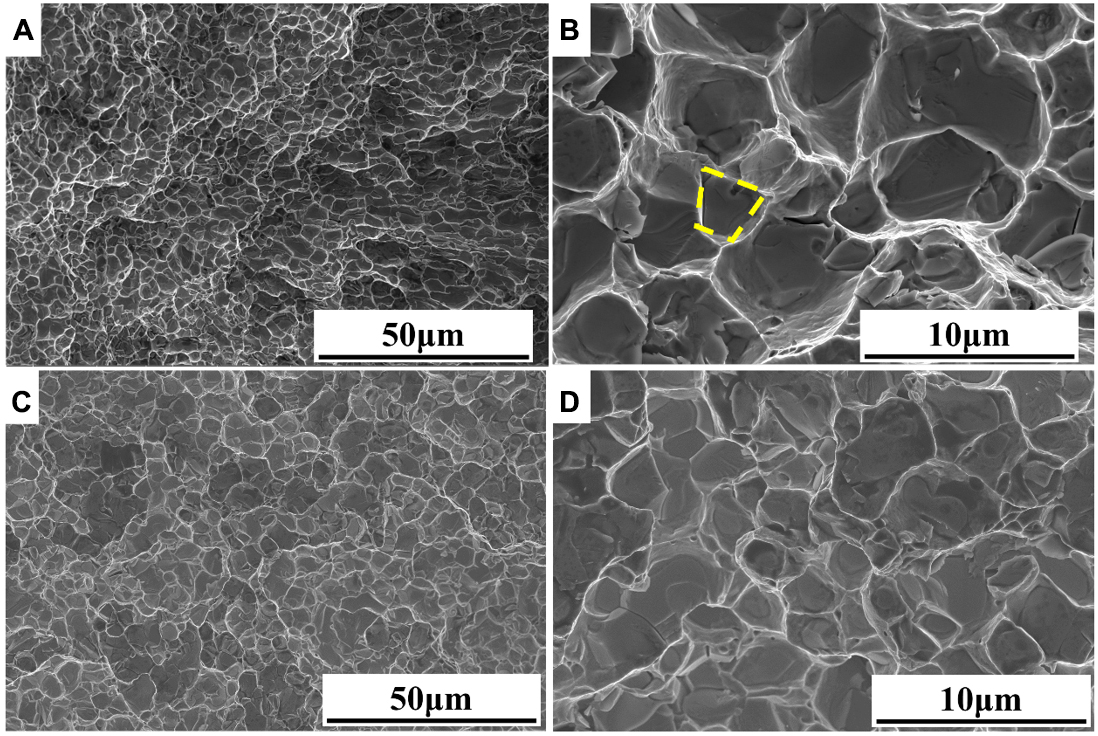

    Figure 7. Fracture surface of B12 (A and B) and B15 (C and D) tensile samples, displayed at different magnifications.


    In this work, a series of [(FeNiCo)0.85Cr0.15]100-xBx (x = 12, 15, 17) N-HEAs combining high strength and plasticity were successfully synthesized by the B2O3 fluxing technique. We used a set of advanced characterization techniques to understand the structure and properties of these alloys. The conclusions are summarized below:

    (1) The B2O3 fluxing treatment achieved a large degree of undercooling (385 K) of the centimeter-size N-HEAs alloy melts.

    (2) The fluxed N-HEAs had a network-like structure with a wavelength of 3-5 μm; one sub-network consisted of a hard Cr2B-type intermetallic phase, while the other was a soft FCC solid solution.

    (3) The volume fraction of the two sub-networks could be tailored by varying the B concentration, resulting in a gradual change in the yield strength and compressive strain of the N-HEAs. When the B content decreased from 17% to 12%, the yield strength decreased from 1.6 to 1.1 GPa and the compressive strain increased from 20% to 70%.

    (4) N-HEAs with B contents of 12% and 15% further exhibited a good tensile ductility of 19% and 14%, respectively. The in situ synchrotron X-ray diffraction analysis of the tensile behavior demonstrated that the whole deformation process could be divided into three regions based on the lattice strain evolution. This heterogeneous deformation originated from the strength difference between the two phases. Dynamic stress partitioning between the soft FCC phase and the hard Cr2B-type intermetallic phases induced a cooperative deformation, which improved the ductility.

    This work provides an industry-friendly route to fabricate N-HEAs with superior and controllable mechanical properties. Moreover, microalloying and thermal/mechanical treatment could be employed to further develop fluxed N-HEAs with excellent strength and ductility.
